Wiring harness fits Fender USA Eric Johnson Stratocaster 300k CTS vol .1uF cap
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| To Fit | Electric Guitar |
| Country/Region Of Manufacture | United States |
| To Fit Guitar | Electric Guitar |
| Type | Wiring Harness |
| MPN | Does Not Apply |
| Brand | Fender |

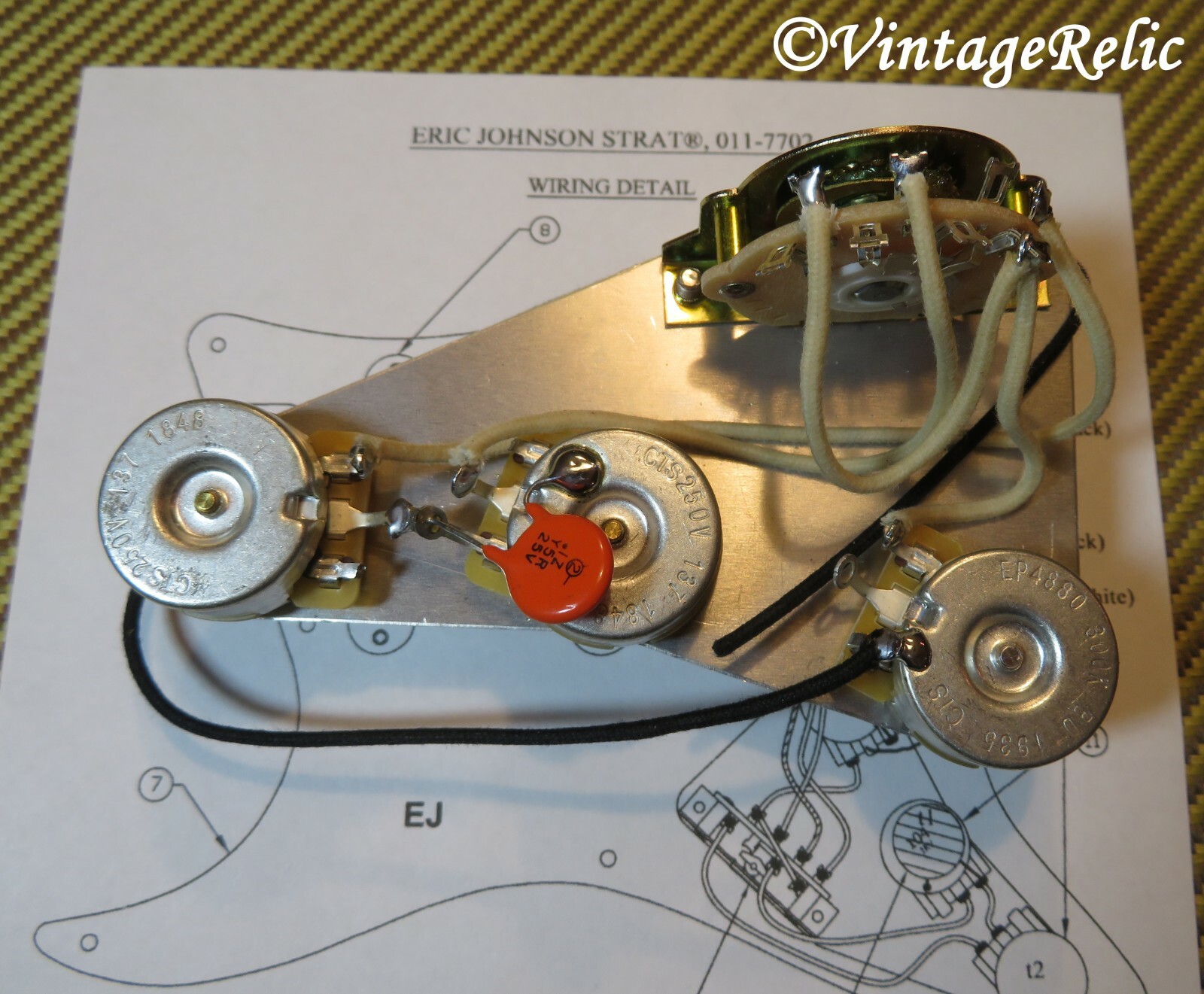

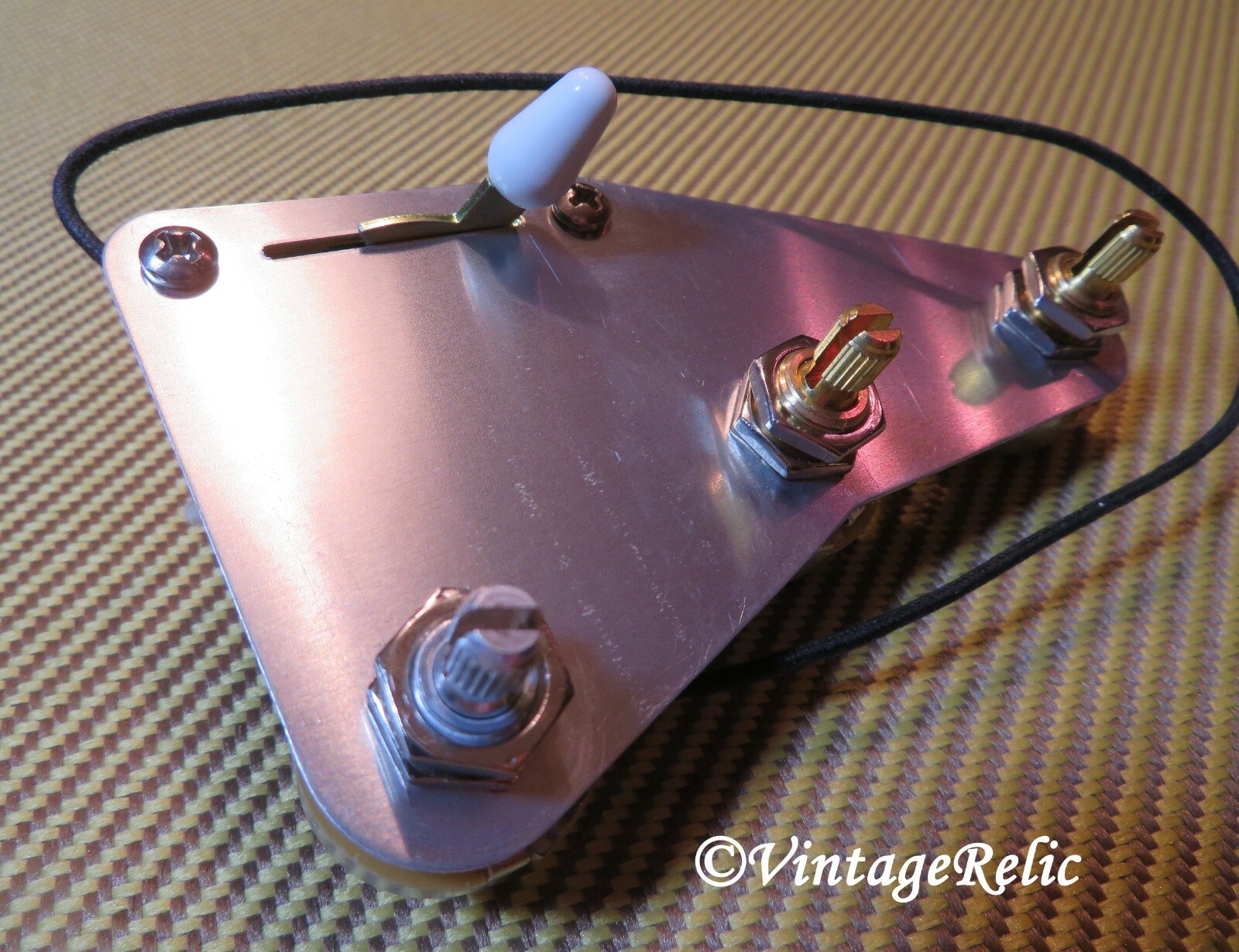

BEFORE BIDDING make sure to READ all text below, look at all the pictures, and review shipping costs and return policy. We ship FAST! Thank you! "Vintage Relic pre-wired upgrade wiring kit fits Fender Eric Johnson Stratocaster. New. This is the best and most economical way to improve the tone of your Strat! "Eric Johnson" Strat wiring (tone for neck and bridge pickup only). Wired exactly to specs of the Eric Johnson Strat. Full wiring diagram included. Pickup Switching: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup Controls: Master Volume, Tone 1. (Neck Pickup), Tone 2. (Bridge Pickup) 3 CTS split shaft pots (300k volume, 250k tone) 5-way control switch. Ships with a white plastic switch tip. .1uF ceramic disc tone capacitor. All cloth vintage style 22 ga push back wire. Mounted on a Fender aluminum control shield (Fender P.N. 001-9640-000). Reduces unwanted noise/60 cycle hum. Ground wire soldered to the volume pot." Fits Fender USA vintage spec guitars. May fit other guitars, but please ASK before purchase. The USA CTS pots require a 3/8" hole in pickguard, etc. Distance between the components (center to center); if you need different spacing, let us know:switch to volume = 2.0"volume to tone 1 = 1.75"tone 1 to tone 2 = 1.75" Above text and pictures copyright Vintage Relic. All rights reserved.Pot specs:Tolerance = +/- 10% Can Size = 15/16 in. radius X 3/8 in. heightBushing Threads = 3/8-32 Bushing Height = 3/8 in. Shaft Type - split Shaft Diameter = .238 in (6.3mm) Spline Count = 24 (NOT metric) Shaft Length - 3/8 in. Hole size requirement = 3/8 in.
